Dining & Food-Safety Device

RCY2030

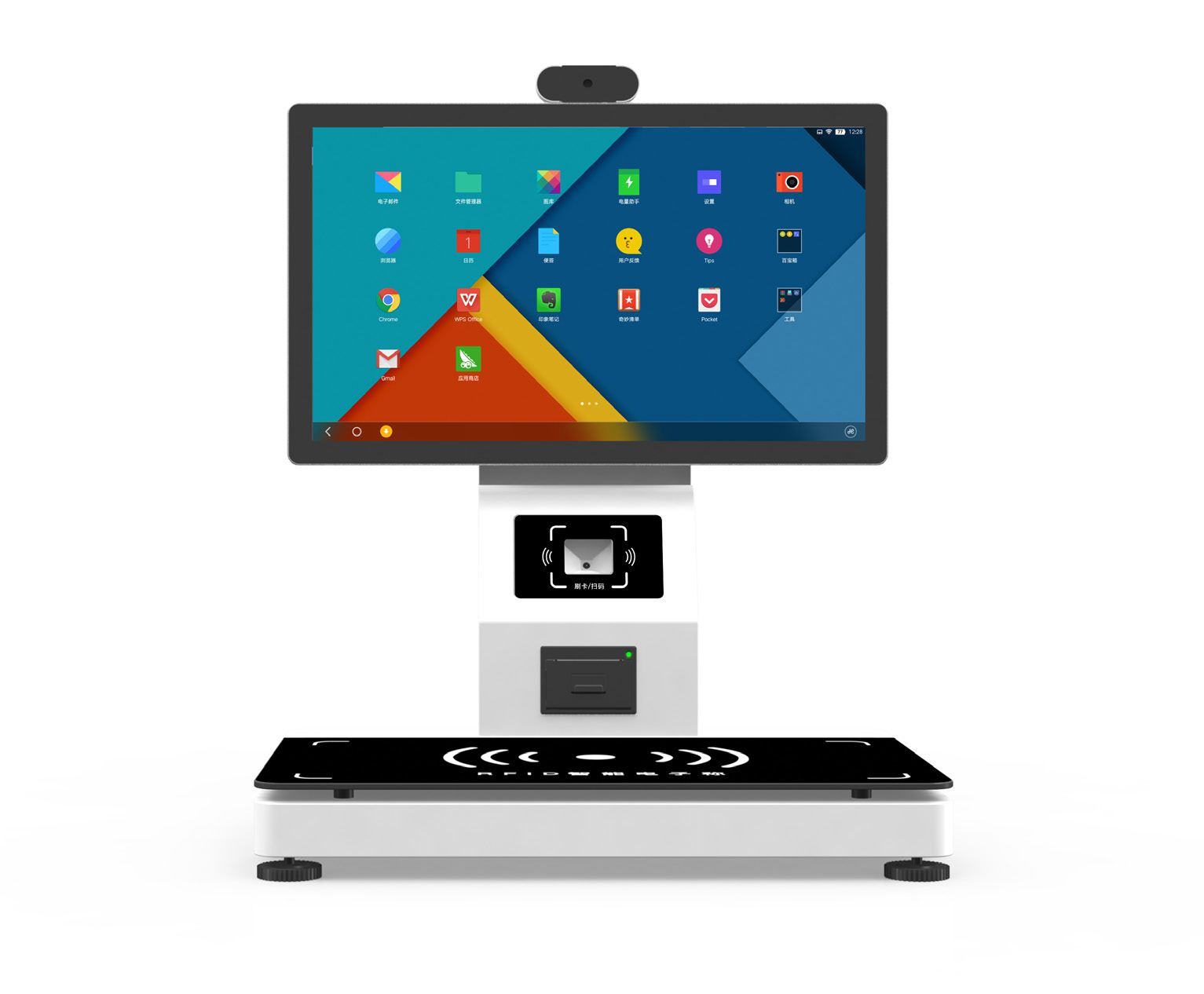

21.5-inch smart weighing cash register | Android or Windows

Weighing, payment, printing and optional RFID in one checkout terminal

Key parameters

Product model

RCY2030

Product name

Smart Weighing Cash Register

Product size

520 x 368 x 650 mm

Operating system

Android / Windows

Screen size

21.5 inch

Screen resolution

1920 x 1080

RCY2030

Technical Data

Technical specifications

Model parameters for product comparison and engineering review.

Product & Display

Product modelRCY2030
Product nameSmart Weighing Cash Register
Product size520 x 368 x 650 mm
Operating systemAndroid / Windows
Screen size21.5 inch
Screen resolution1920 x 1080
Touch10-point touch
Screen rotationUp / down 70 degrees
MaterialAluminum alloy, titanium alloy, tempered glass, acrylic
PrinterSerial RS232 / TTL or USB; 58 mm thermal paper
ScannerBarcode / QR code
Card reader13.56 MHz, ISO15693 / ISO14443A, approx. 0-15 cm, RS232, 5 V DC
RFID optionOptional built-in RFID antenna

System, Interface & Environment

CPURK3562 quad-core 64-bit 2.0 GHz / Intel i5 4th generation
Memory / storage2 GB + 32 GB / 8 GB + 128 GB
CameraMonocular camera, D90 degrees, USB power
Scheduled power on/offSupported
SDKC / C++ / C# / Java
Power input12 V DC, 5 A
Communication interfaceRS232
NetworkEthernet, WiFi
External interfacesUSB x2
Sensor grade>= 3C
Maximum capacity50 kg
Operating temperature-20 C to 60 C
Storage temperature-40 C to 85 C
Relative humidity10%-95% RH, non-condensing
Gross weight-

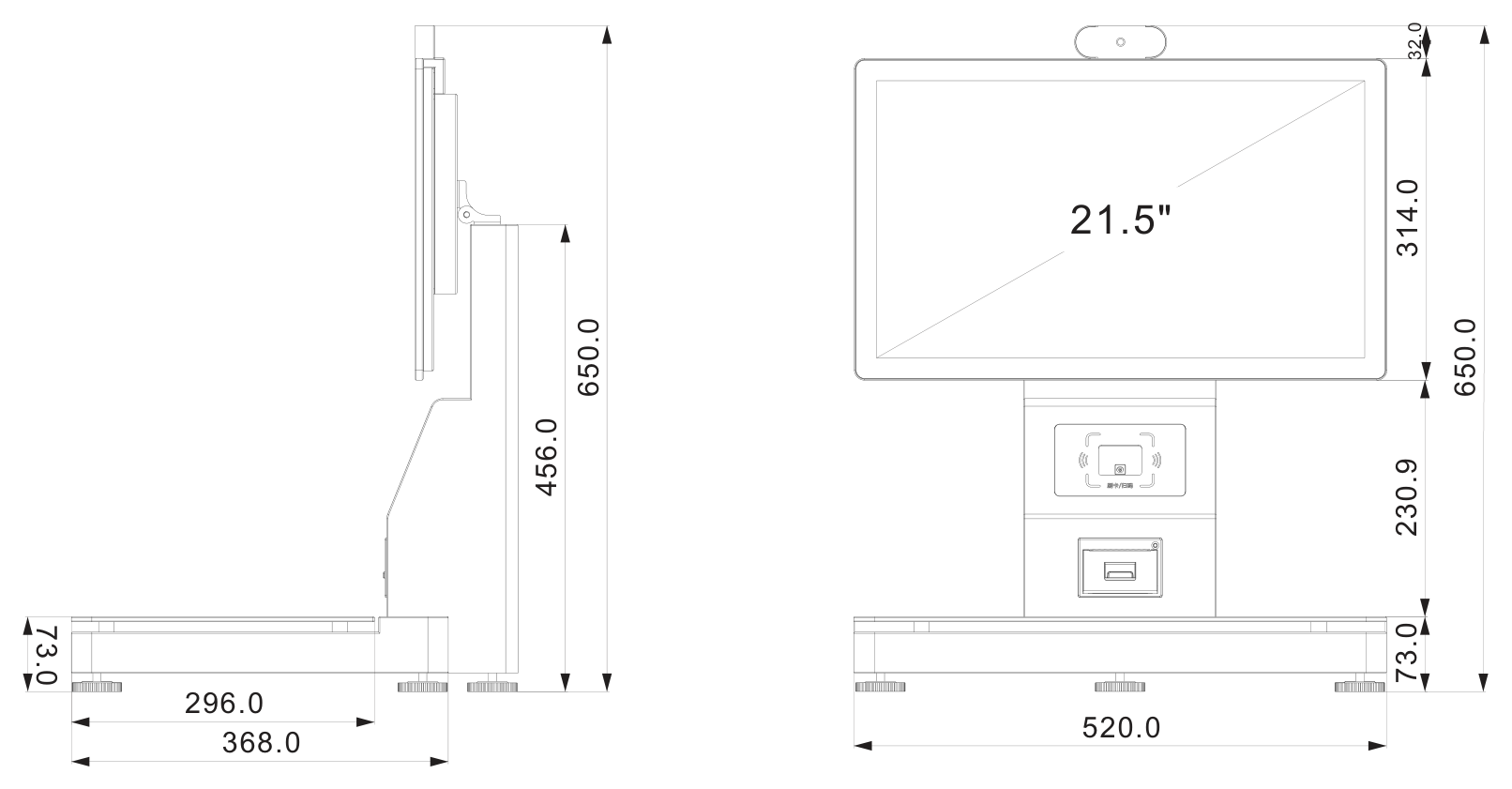

Mechanical Dimensions

Physical size and structure drawing

Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.

RCY2030 mechanical dimensions
