Dining & Food-Safety Device

RCY2040

15.6-inch Android scan-code tray-binding station

Face, card and barcode-assisted tray registration at the dining counter

Request product match View model index View product manual

Key parameters

Product model

RCY2040

Product name

Smart Tray Binding Machine

Tray recognition

Automatic sensing, barcode / QR code

Product size

428 x 518 x 505 mm

Recognition time

<= 1 s

Operating system

Android

Technical Data

Technical specifications

Model parameters for product comparison and engineering review.

Product & Display

Product model	RCY2040
Product name	Smart Tray Binding Machine
Tray recognition	Automatic sensing, barcode / QR code
Product size	428 x 518 x 505 mm
Recognition time	<= 1 s
Operating system	Android
Screen size	15.6 inch
Screen resolution	1920 x 1080
Touch	10-point touch
Screen rotation	Up / down 25 degrees
Material	Aluminum alloy, titanium alloy, tempered glass, acrylic
Tray base	Standard
Card reader	13.56 MHz, ISO15693 / ISO14443A, approx. 0-15 cm, USB, 5 V DC

System, Interface & Environment

CPU	RK3568 quad-core 64-bit, 2.0 GHz
Scanner	Barcode / QR code
Memory / storage	2 GB + 16 GB
Camera	Binocular wide-dynamic camera with live face detection
Scheduled power on/off	Supported
SDK	C / C++ / C# / Java
Power input	12 V DC
Communication interface	RS232
Network	Ethernet, WiFi
External interfaces	Hidden USB x2
Operating temperature	-20 C to 60 C
Storage temperature	-40 C to 85 C
Relative humidity	10%-95% RH, non-condensing
Gross weight	15 kg

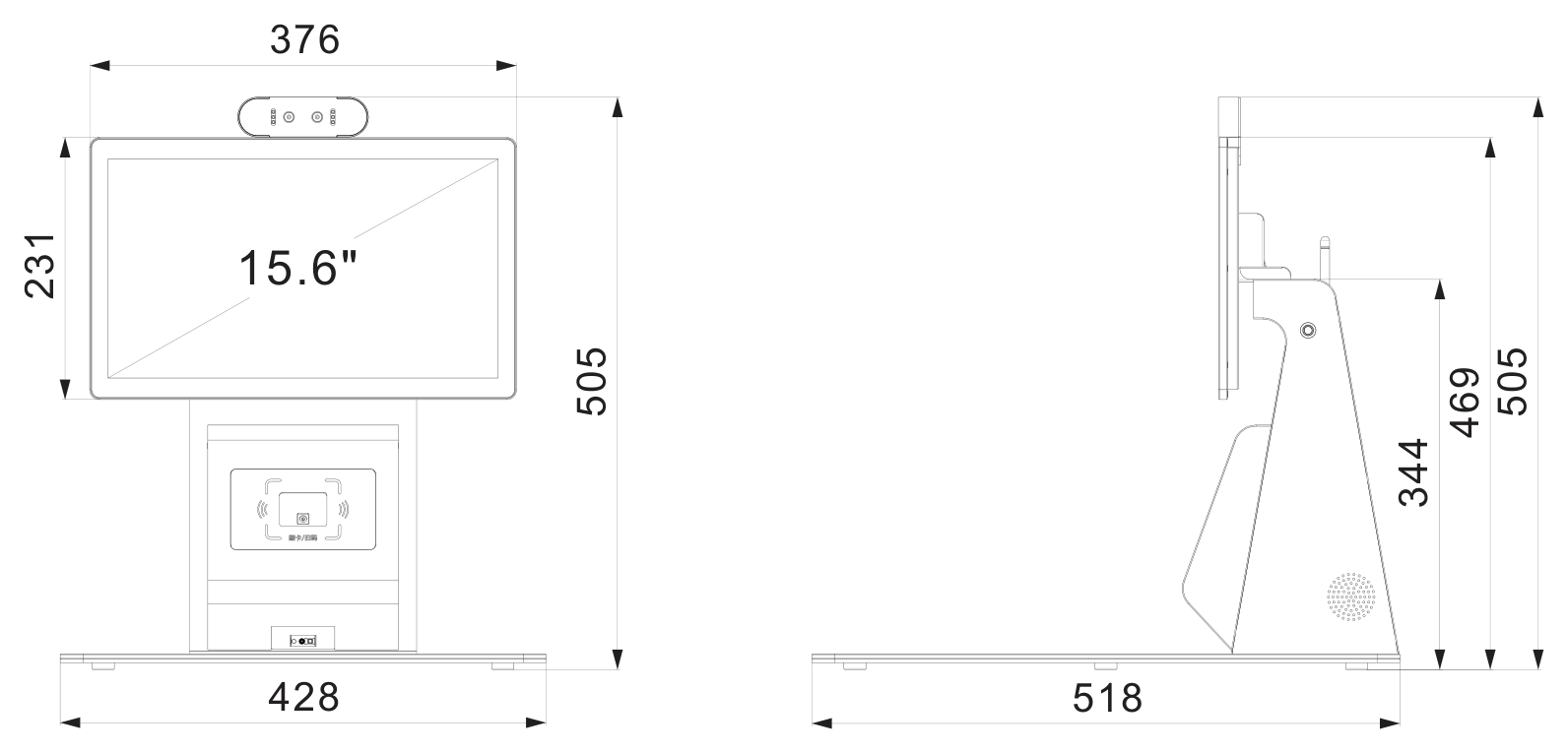

Mechanical Dimensions

Physical size and structure drawing

Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
