Library & Public-Service Equipment

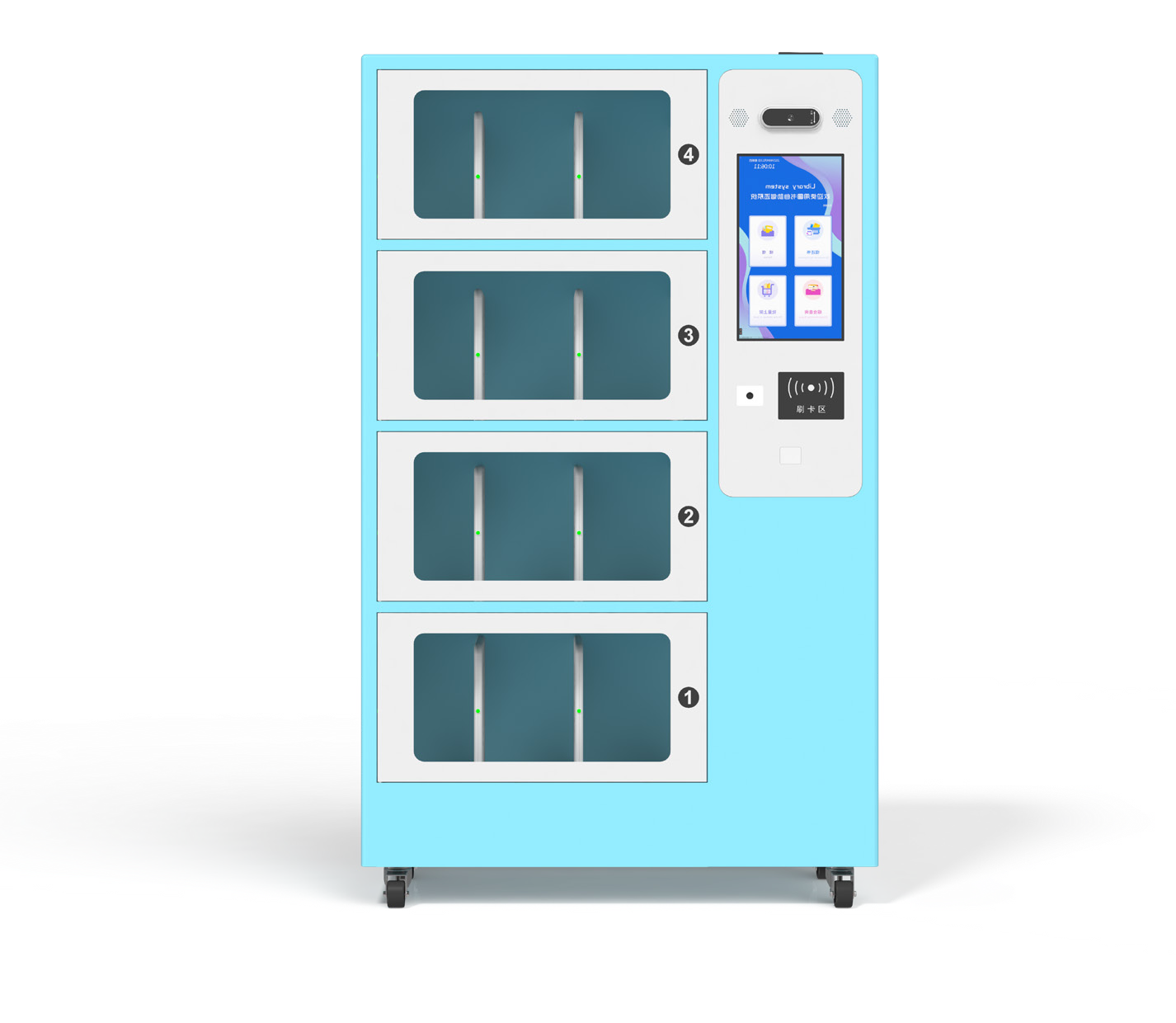

RWT104M

Four-door mini library cabinet | up to 200 books

Compact unattended circulation in independently locked compartments

Request product match View model index View product manual

Key parameters

Product model

RWT104M

Product name

Mini Library Cabinet

Working frequency

13.56 MHz

Supported standards

ISO15693 and ISO18000-3

Cabinet layers

4 layers, 4 doors, independent door control

Book capacity

<= 200 books, based on approx. 5 mm book thickness

Technical Data

Technical specifications

Model parameters for product comparison and engineering review.

Product Parameters

Product model	RWT104M
Product name	Mini Library Cabinet
Working frequency	13.56 MHz
Supported standards	ISO15693 and ISO18000-3
Cabinet layers	4 layers, 4 doors, independent door control
Book capacity	<= 200 books, based on approx. 5 mm book thickness
Borrowing methods	Face recognition, IC card, ID card, WeChat QR code, QR/barcode
Energy-saving technology	Radar sensing, sensing distance up to 10 m
Screen size	15.6 inch portrait touchscreen
Camera	2 MP adjustable camera
External USB	2
Cabinet door	Electronic lock opening

Structure, Reader & System

Physical size	978 x 420 x 1614 mm
Package size	Not specified in source PDF
Read / write function	Supports multi-tag identification and fast anti-collision processing
Screen resolution	1080 x 1920 @ 60 Hz
Touch type	10-point capacitive touchscreen
Material structure	>= 1.5 mm titanium alloy, tempered glass
HF reader	13.56 MHz; ISO15693 and ISO18000-3; 1-8 W; >= 65 tags/s; RS232 / RS485 / Ethernet
Network	Ethernet, WiFi
Power input	220 V 60 Hz
Gross weight	Approx. 120 kg

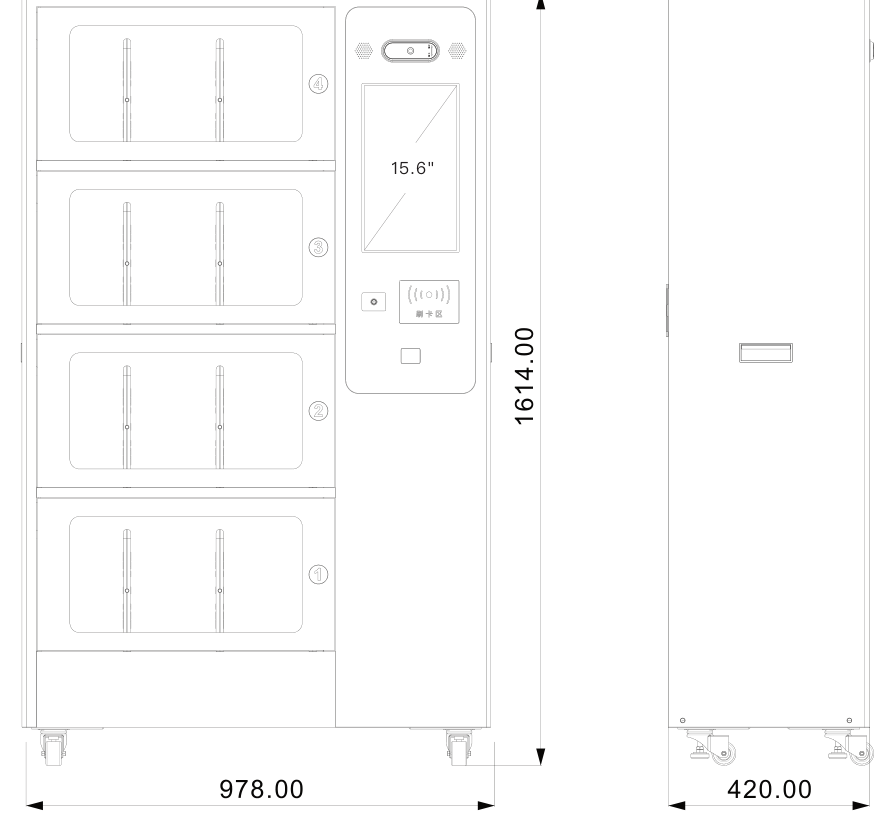

Mechanical Dimensions

Physical size and structure drawing

Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
