Library & Public-Service Equipment

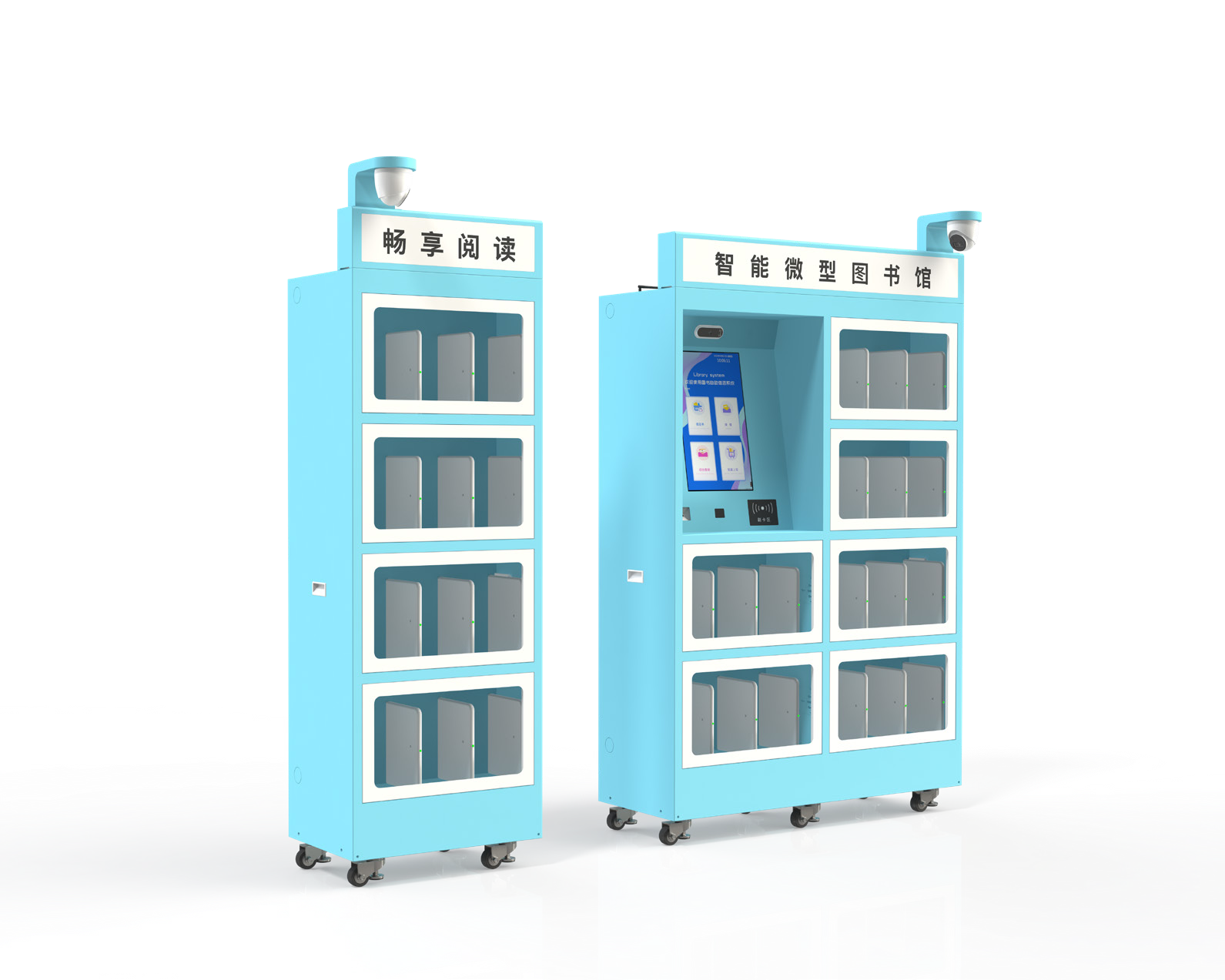

RWT110

Cascadable mini library cabinet | main and auxiliary units

Expandable independent-door circulation for unattended service

Request product match View model index View product manual

Key parameters

Product model

RWT110

Product name

Intelligent Mini Library Cabinet

Working frequency

13.56 MHz

Supported standards

ISO15693 and ISO18000-3

Cabinet layers

Main cabinet: 4 layers / 6 doors; auxiliary cabinet: 4 layers / 4 doors; expandable splicing

Book capacity

<= 500 books total; main cabinet approx. 300 books, auxiliary cabinet approx. 200 books

Technical Data

Technical specifications

Model parameters for product comparison and engineering review.

Product Parameters

Product model	RWT110
Product name	Intelligent Mini Library Cabinet
Working frequency	13.56 MHz
Supported standards	ISO15693 and ISO18000-3
Cabinet layers	Main cabinet: 4 layers / 6 doors; auxiliary cabinet: 4 layers / 4 doors; expandable splicing
Book capacity	<= 500 books total; main cabinet approx. 300 books, auxiliary cabinet approx. 200 books
Borrowing methods	Face recognition, IC card, ID card, WeChat QR code, QR/barcode
Energy-saving technology	Radar sensing, sensing distance up to 10 m
Screen size	21.5 inch portrait touchscreen
Camera	2 MP adjustable camera
External USB	2
Cabinet door	Electronic lock opening
Monitoring system	Hikvision monitoring system with dual cameras

Structure, Reader & System

Physical size	Main cabinet: 1268 x 450 x 2127.5 mm; auxiliary cabinet: 649 x 450 x 2127.5 mm
Package size	Main cabinet: 1385 x 560 x 1970 mm; auxiliary cabinet: 770 x 560 x 1970 mm
Read / write function	Supports multi-tag identification and fast anti-collision processing
Screen resolution	1080 x 1920 @ 60 Hz
Touch type	10-point capacitive touchscreen
Material structure	>= 1.5 mm titanium alloy, tempered glass
HF reader	13.56 MHz; ISO15693 and ISO18000-3; 1-8 W; >= 65 tags/s; RS232 / RS485 / Ethernet
Network	Ethernet, WiFi
Power input	220 V 60 Hz
Gross weight	Main cabinet approx. 210 kg; auxiliary cabinet approx. 100 kg

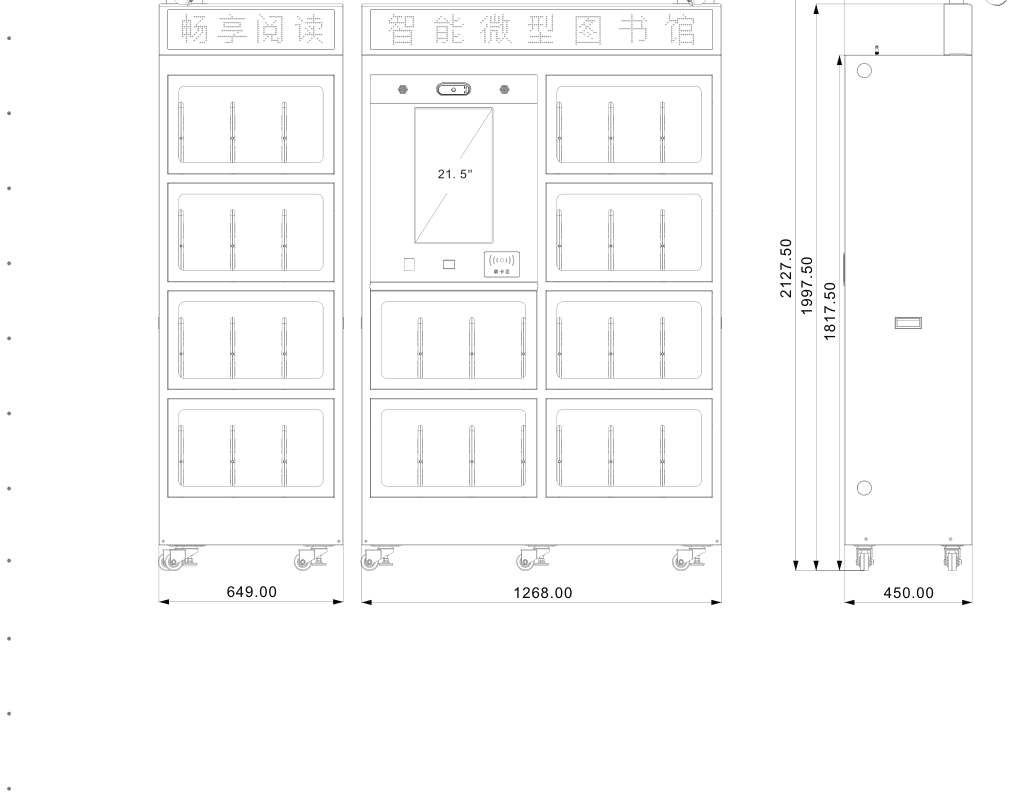

Mechanical Dimensions

Physical size and structure drawing

Dimension drawings help customers confirm installation space, enclosure design, mounting, and workstation layout before procurement.
